In the power system, maintaining a balance between electricity generation and demand is critical. To ensure system reliability, operators rely on different types of reserves—backup generation capacity that can be activated during sudden demand changes, generator failures, or unexpected outages.
📌 What is Reserve in Power System?
A reserve is the extra generating capacity available to a power system operator to meet unexpected load increases or generation outages. These reserves help in maintaining grid stability and reliability.
⚙️ Types of Power System Reserves
1️⃣ Spinning Reserve
Definition: Extra generation capacity already connected to the grid and operating below maximum output.
- Example: A thermal unit running at 70% load, ready to increase up to 100%.
- Response Time: Within 10 seconds to a few minutes.
- Source: Synchronous generators, hydro plants.
2️⃣ Non-Spinning Reserve
Definition: Reserve not currently connected but can be started quickly (within 10–30 minutes).
- Example: Idle gas turbine ready to start.
3️⃣ Hot Reserve
Definition: Standby capacity in warmed-up condition to reduce startup time.
- Example: Heated thermal plant boiler.
4️⃣ Cold Reserve
Definition: Reserve completely shut down, requiring hours to start.
- Example: Steam plant that needs full start-up process.
5️⃣ Firm Reserve
Definition: Guaranteed reserve through contracts to be used in peak or emergencies.
6️⃣ Supplementary Reserve
Definition: Used when primary and secondary reserves are not sufficient.
7️⃣ Balancing Reserve (Load-Following Reserve)
Definition: Used to match generation with load variations over a short time (5–30 minutes).
8️⃣ Contingency Reserve
Definition: Used for sudden unexpected failures like generator or transmission line loss.

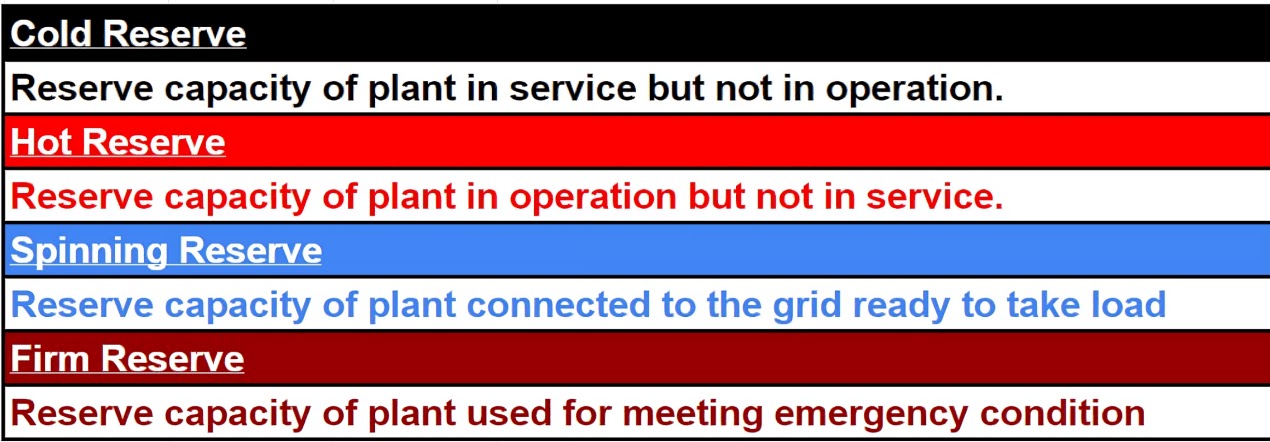

Comparison of Cold, Hot, Spinning and Firm Reserve
|
Reserve Type |
Plant Status |
Grid Connection |
Operation Condition |
Purpose / Use |
Exam Key Line |
|
Cold Reserve |
Plant is available but shut down |
❌ Not connected |
Take more time to start |
For long-term backup |
In service but not in operation |
|
Hot Reserve |
Plant running condition me |
❌ Not supplying load |
Warm condition, Quickly start |
For Short Notice Demand |
In operation but not supplying power |
|
Spinning Reserve |
Plant already running |
✅ Connected to grid |
Turbine spinning can take load
quickly |
Sudden load change/generator failure |
Connected & ready to take the load |
|
Firm Reserve |
Dedicated reserve capacity |
Depends |
Use in Emergency |
System reliability & emergency supply |
Used only for emergency conditions |
🧮 Numerical Examples
Numerical 1: Reserve Requirement Calculation
Q: A system has a peak load of 500 MW, spinning reserve of 50 MW and non-spinning of 70 MW. Calculate total reserve and reserve margin.
Answer: Total Reserve = 120 MW, Reserve Margin = (120/500)×100 = 24%
Numerical 2: Activation Time
Q: Hot reserve (100 MW, 20 mins) vs Cold reserve (150 MW, 4 hours). Which is helpful for a sudden outage?
Answer: Hot reserve, due to quick activation.
📌 Summary Table
| Reserve Type | Connected to Grid | Startup Time | Use Case |
|---|---|---|---|
| Spinning | Yes | Seconds–Minutes | Sudden load/generator trip |
| Non-Spinning | No | 10–30 Minutes | Support after initial reserve |
| Hot | No (Warmed-up) | 15–30 Minutes | Quick start |
| Cold | No (Cold) | Hours | Long-term backup |
| Firm | Maybe | Contractual | Emergency backup |
| Supplementary | Maybe | Minutes–Hours | After primary/secondary |
| Balancing | Yes or No | 5–30 Minutes | Load-following |
| Contingency | Yes or No | Immediate–30 Minutes | Unexpected failure |
🔖 Frequently Asked Questions (FAQs) on Power System Reserves
1. What is reserve in a power system?
A reserve in a power system is the additional generating capacity kept available to meet sudden load increases or unexpected generator outages, ensuring grid stability and reliable power supply.
2. Why are reserves required in a power system?
Reserves are required to maintain balance between electricity generation and demand, handle sudden failures, avoid blackouts, and maintain frequency within permissible limits.
3. What is spinning reserve?
Spinning reserve is the extra generating capacity that is already connected to the grid and operating below its rated capacity. It can respond immediately to sudden load changes or generator trips.
4. What is non-spinning reserve?
Non-spinning reserve consists of generating units that are not currently connected to the grid but can be started and synchronized within a short time, usually 10 to 30 minutes.
5. What is the difference between hot reserve and cold reserve?
Hot reserve is maintained in a warmed-up condition and can be started quickly, whereas cold reserve is completely shut down and requires several hours to become operational.
6. Which reserve responds fastest to sudden load variation?
Spinning reserve responds the fastest because the generator is already synchronized with the grid and can immediately increase its output.
7. What is firm reserve in power systems?
Firm reserve is a guaranteed reserve capacity obtained through contractual arrangements and is used during emergency conditions or peak demand periods.
8. What is supplementary reserve?
Supplementary reserve is used when primary and secondary reserves are insufficient. It helps in restoring the system balance over a longer duration.
9. What is balancing reserve?
Balancing reserve, also known as load-following reserve, is used to continuously adjust generation to match short-term load variations, typically within 5 to 30 minutes.
10. What is contingency reserve?
Contingency reserve is maintained to handle sudden and unexpected events such as generator failure or transmission line outage.
11. Which reserve takes the longest time to start?
Cold reserve takes the longest time to start because the generating unit is completely shut down and requires a full startup process.
12. Is power system reserve an important topic for SSC JE and RRB JE exams?
Yes, power system reserves are an important topic for SSC JE, RRB JE, GATE EE, and other electrical engineering competitive exams. Questions are commonly asked in MCQs and theory sections.
